Crawler Mounted Mobile Water Well Drilling Rig ,Borehole Drilling Machine

Name: Crawler Mounted Mobile Water Well Drilling Rig Borehole Drilling Machine
Brand: SHITAN
Price: 3600 USD

Cheap Crawler Mounted Mobile Water Well Drilling Rig ,Borehole Drilling Machine for sale

Brand Name : SHITAN

Model Number : ST200

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD3600-6300/set

Payment Terms : Western Union, T/T, L/C

Delivery Time : 7days

Packaging Details : wooden box

product name : Borehole Drilling Machine

Deepth : Max.200M

hole wire diameter : 42mm,50mm

Weight : 550kg

Contact Now

Crawler Mounted Mobile Water Well Drilling Rig ,Borehole Drilling Machine

Application of the borehole drilling rig

This drilling machine is applicable to geological survey, geophysical prospecting as well as the drilling projects of roads and construction survey.

Choose drill bits of diamond, alloy, steel sand or steel grit to drill wells according to different stratum.

It can drill grade 2-9 sand clay and bedrock layer.

It can be used for drilling grout holes, blast holes and small pillar base holes.

Technical parameter of the borehole drilling rig

1. Basical parameter

a. Drilling depth: 200 meter

b. Drilling hole diameter: 42, 43mm

c. The Max. opening hole diamter: 150mm

d. Angle range: 90-75 degree

e. Dimension: 1710*900*1500 mm

f. Weight: 600 KG

2. Swivel head

a. Spindle speed (5-speed) suitable for different geological structure

b. Spindle stroke: 450mm

c. Spindle pull-down Max.: 15KN

3. Hoist

Max. lifting capacity: 15KN

4. Oil pump

Model: YBC-12/125

5. Power

Diesel engine model type:ZS1105

Crawler Mounted Mobile Water Well Drilling Rig ,Borehole Drilling Machine

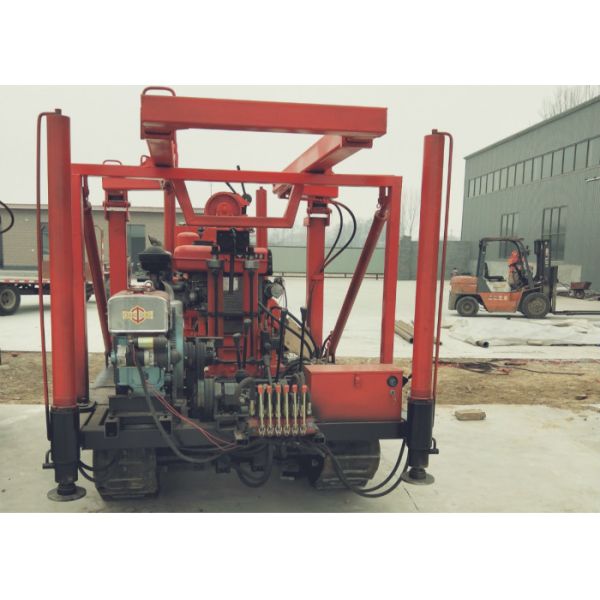

Crawler Mounted Mobile Water Well Drilling Rig ,Borehole Drilling Machine Images
